Argweld® QuickPurge® Inflatable Tube, Pipe and Pipeline

Overview
Tech Specs
Ordering
FAQ

A Huge Size Range and Fast Purging Too...!

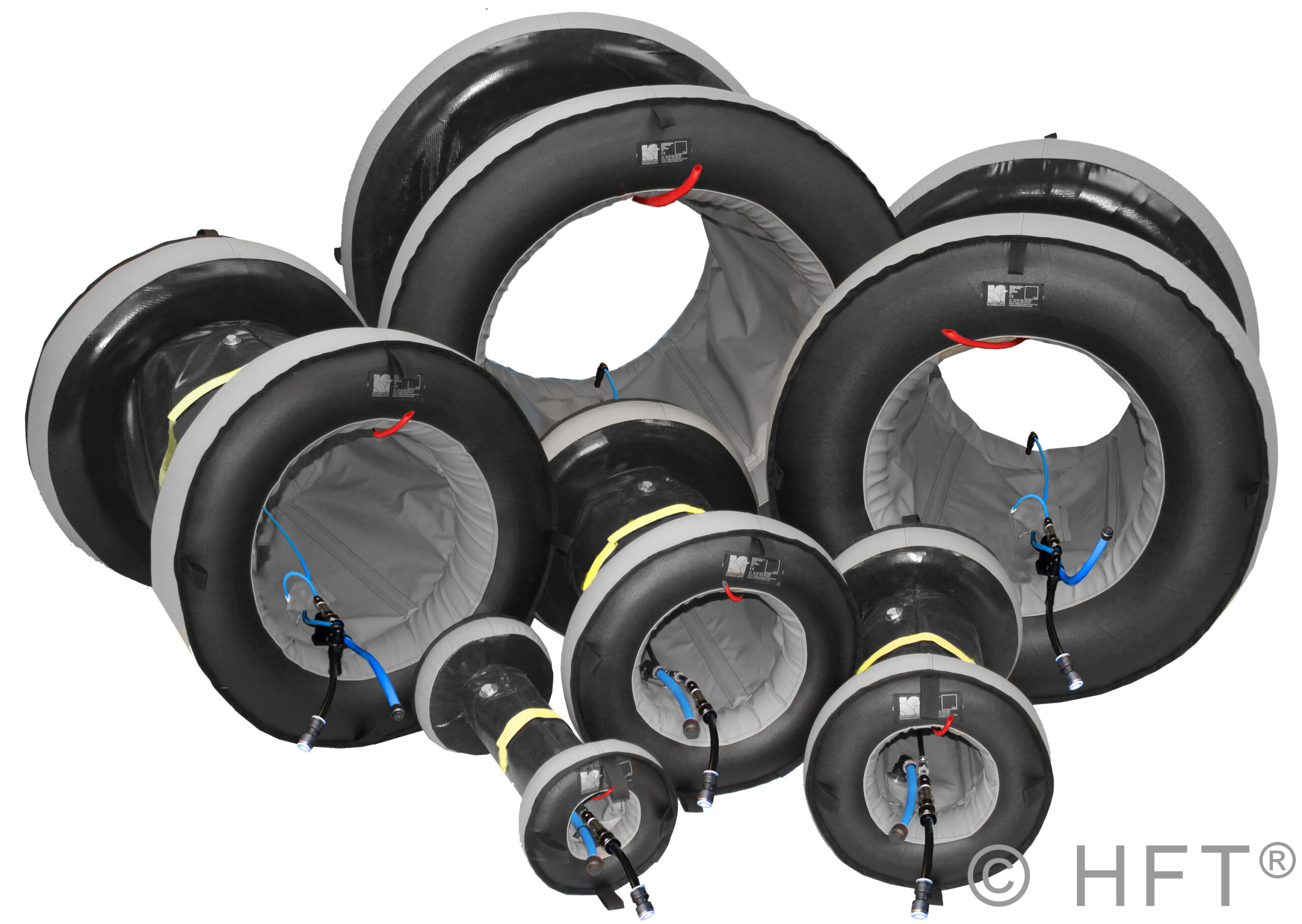

Introducing the Argweld® QuickPurge® range of high-speed inflatable Weld Purging Systems for pipework and pipelines, the latest scientific innovation from Huntingdon Fusion Techniques HFT®. Designed for fast, efficient, and cost-effective purging, QuickPurge® systems are available in sizes from 6 to 88 inches (152 to 2,235 mm).
Why Choose Argweld® QuickPurge®
Superior Technology and Design

QuickPurge® systems leverage advanced technology to ensure efficient and reliable weld purging, featuring innovative solutions like IntaCal® and PurgeGate® mechanisms.

Cost and Time Efficiency

Significant reductions in purge time and inert gas usage translate into lower operating costs and faster project completion.

Versatility and Durability

Available in various sizes, QuickPurge® systems are suitable for various industries and applications, offering durability and reusability for long-term value.

Key Features and Benefits
  • Elegant Material: The new textured black and grey material is temperature resistant with a lower outgassing rate.
  • IntaCal® Technology: This technology simplifies the purging process with an automatic gas release system, eliminating the need for manual valve adjustments.
  • PurgeGate® Mechanism: Prevents over-inflation and bursting, ensuring the system's longevity.
  • RootGlo® Centre Alignment Band: This luminescent band helps operators accurately position the system within the pipe. It is visible through the root gap for up to 12 hours.
  • Reduced Purge Time: Typical purge times are under 8 minutes for a 36" pipe to reach 0.1% oxygen.
  • Gas Savings: Minimizes the volume of inert gas needed, reducing operating costs.
  • Durable Construction: Made from high-quality materials, QuickPurge® systems are designed for repeated use.
  • Heat Resistance: Suitable for high-temperature applications, with heat-resistant versions available for pre-heated pipework.
  • Rapid Payback: The system pays for itself in just a few welds through significant time and gas savings.
  • Reliable Welds: Ensures high-quality, oxide-free welds, preventing costly rework and NDT failures.
Technical Specifications
Sizes Available:
6 to 88 inches (152 to 2,235 mm).
Material:
Low vapour pressure, temperature-resistant, and durable.
Operating Temperature:
Maximum 80ºC (176ºF).
Inflation Mechanism:
IntaCal® gas release system and PurgeGate® technology.
Alignment Aid:
RootGlo® Centre Alignment Band for accurate positioning.
Ordering
  • Pipe Weld Joints: Ideal for purging pipe weld joints in various industries, including refineries, power stations, LNG terminals, and pipelines.
  • Reactive Metals: These are suitable for welding stainless steel, titanium, duplex, chrome steels, nickel, and other alloys.
  • Cryogenic Pipelines: Widely used in constructing cryogenic pipelines and LNG facilities.
  • High-Purity Applications: Essential for achieving high-purity welds in semiconductor, pharmaceutical, and food processing industries.
Your Questions Answered
QuickPurge® systems dramatically reduce welding times and argon usage. For example, homemade devices can purge a 36" pipe joint in as little as 10 minutes compared to 4-8 hours.
QuickPurge® systems are available in 6 to 88 inches (152 to 2,235 mm).
Yes, QuickPurge® Systems can be manufactured with longer collars for return bends upon request.
Yes, they are designed for multiple uses, providing a cost-effective solution.
Argon and helium are commonly used, but any inert gas or gas mix can be utilised.
They are made from low vapour pressure, flexible, durable, and heat-resistant materials.
QuickPurge® Systems offer significant savings in time and gas, paying for themselves in just a few welds.
Yes, they are resistant to typical welding process heat. For higher temperatures, Argweld® HotPurge® systems are available.

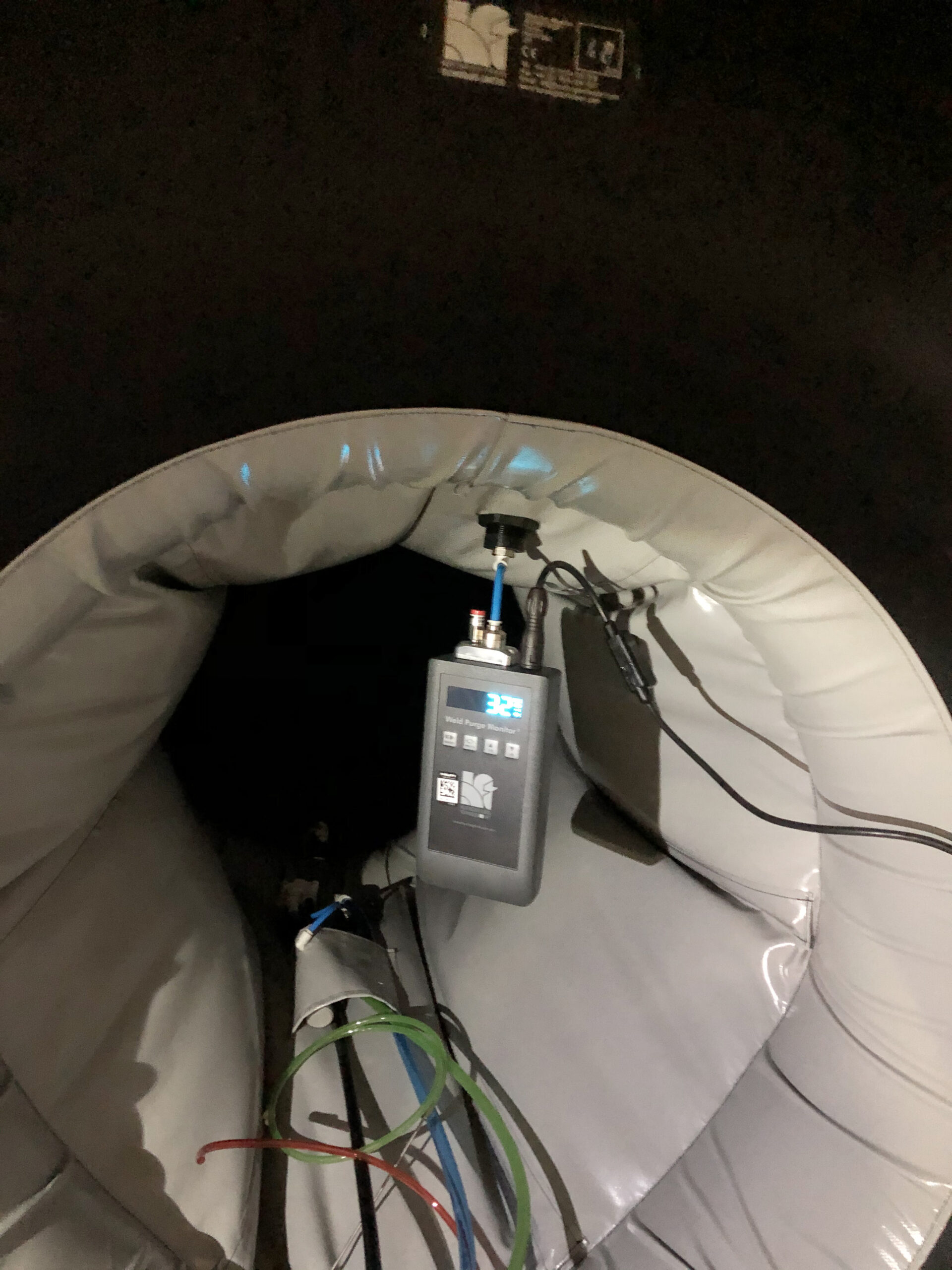

Use a dedicated "PurgEye® Weld Purge Monitor®".

QuickPurge® Systems have high-strength pull loops and RootGlo® for easy positioning.

Continuous purging maintains effective sealing, allowing for post-weld cooling and inspection.
